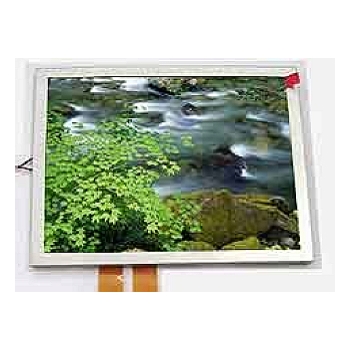

The LD101WX1 is a Color Active Matrix Liquid Crystal Display with an integral LED backlight system. The
matrix employs a-Si Thin Film Transistor as the active element. It is a transmissive type display operating in
the normally white mode. This TFT-LCD has 10.1 inches diagonally measured active display area with
WXGA resolution (1280 horizontal by 800 vertical pixel array). Each pixel is divided into Red, Green and
Blue sub-pixels or dots which are arranged in vertical stripes. Gray scale or the brightness of the sub-pixel
color is determined with a 6bit + 2bit FRC gray scale signal for each dot, thus, presenting a palette of more
than 16,777,216 colors. The LD101WX1 has been designed to apply the interface method that enables low
power, high speed, low EMI. The LD101WX1 is intended to support applications where thin thickness, low
power are critical factors and graphic displays are important. In combination with the vertical arrangement of
the sub-pixels, the LD101WX1 characteristics provide an excellent flat display.
| CHARACTERISTIC ITEM | SPECIFICATION |
|---|---|
| Active screen size | 10.1 inches diagonal |
| Outline Dimension | LCD : 228.96(H) × 148.5(V) x 2.5(D,Max), 4.8(D,Max. W/PCB |
| Pixel Pitch | 0.1695mm × 0.1695 mm |
| Pixel Format | 1280 horiz. By 800 vert. Pixels RGB strip arrangement |
| Color Depth | 6-bit + FPC, 16.7M colors |
| Luminance, White | 400 cd/m2 (Typ.) / 320cd/m2 (min.) , Average @ 5 point |
| Power Consumption | Total 3.13 W(typ.) (Logic :0.6 W (typ. @ Mosaic), B/L : 2.53W |
| Weight | 145g (Max.) (TBD) |
| Display Operating Mode | Transmissive mode, normally Black |
| Surface Treatment | Hard coat on polarizer |
| RoHS Compliance | Yes |
