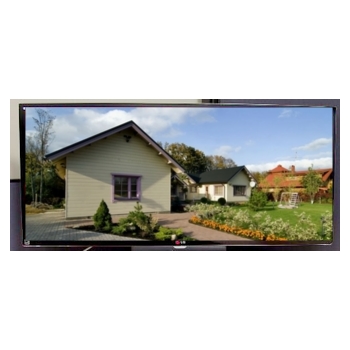

LM340UW1 is a Color Active Matrix Liquid Crystal Display with Light Emitting Diode ( White LED)
backlight system without LED driver. The matrix employs a-Si Thin Film Transistor as the active element.
It is a transmissive type display operating in the normally black mode. It has a 34inch diagonally
measured active display area with WQHD resolution (3440 vertical by 1440 horizontal pixel array) Each
pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes. Gray
scale or the brightness of the sub-pixel color is determined with a 10-bit gray scale signal for each dot,
thus, presenting a palette of more than 1.07Billoin colors with Advance-FRC(Frame Rate Control). It has
been designed to apply the 10-bit 8port LVDS interface.It is intended to support displays where high
brightness, super wide viewing angle,high color saturation, and high color are important.
| CHARACTERISTIC ITEM | SPECIFICATION |
|---|---|
| Active screen size | 34.14 inches(86.72cm) (Aspect ratio 21:9) |
| Outline Dimension | 820.8 (H) x 361.0 (V) x 18.8 mm (Typ.) |
| Pixel Pitch | 0.2325 mm x 0.2325 mm |
| Pixel Format | 3440 horiz. By 1440 vert. Pixels RGB stripes arrangement |
| Color Depth | 1,073,741,824 Colors (8bit+A-FRC) |
| Luminance, White | 320 cd/m2 (Center 1Point, Typ.) |
| Viewing Angle (CR>10) | View Angle Free (R/L 178(Typ.), U/D 178(Typ.)) |
| Power Consumption | Total 43.1 Watt (Typ.) (8 Watt @VLCD, 35.1 Watt w/o driver) |
| Weight | 3710 g (Typ.) |
| Display Operating Mode | Transmissive mode, Normally Black, LVDS 8ports |
| Surface Treatment | Hard coating (3H) & Anti -Glare treatment of the front polarizer |
