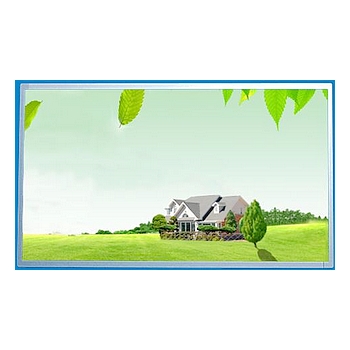

LM270WQ1 is a Color Active Matrix Liquid Crystal Display with Light Emitting Diode ( White LED) backlight system without LED driver. The matrix employs a-Si Thin Film Transistor as the active element. It is a transmissive type display operating in the normally black mode. It has a 27inch diagonally measured active display area with QHD resolution (2560 vertical by 1440 horizontal pixel array) Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes. Gray scale or the brightness of the sub-pixel color is determined with a 8-bit gray scale signal for each dot, thus, presenting a palette of more than 16.7M colors. Ithas been designed to apply the 8-bit 4port LVDS interface.
It is intended to support displays where high brightness, super wide viewing angle,high color saturation, and high color are important.
| CHARACTERISTIC ITEM | SPECIFICATION |
|---|---|
| Active screen size | 27.0 inches(68.47cm) diagonal |
| Outline Dimension | 630.0(H) x 368.2(V) x 14.9(D) mm(Typ.) |
| Pixel Pitch | 0.2331 mm x 0.2331 mm |
| Pixel Format | 2560 horiz. By 1440 vert. Pixels RGB stripes arrangement |
| Color Depth | 16.7M colors, 8Bit |
| Luminance, White | 350 cd/m2 (Center 1Point, Typ.) |
| Viewing Angle (CR>10) | View Angle Free (R/L 178(Typ.), U/D 178(Typ.)) |
| Power Consumption | Total 34.94 Watt (Typ.)(9.24 Watt @VLCD, 25.7 Watt w/o driver) |
| Weight | 2,620g (Typ.) |
| Display Operating Mode | Transmissive mode, normally black |
| Surface Treatment | Hard coating(3H), Anti-glare treatment of the front polarizer |
