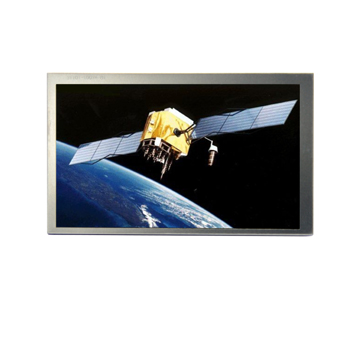

This module utilizes amorphous silicon thin film transistors and a 16:9 aspect ratio.
The 7.0” active matrix liquid crystal display allows 16,777,216 colors to be displayed by LVDS interface is available.
The 7.0” active matrix liquid crystal display allows 16,777,216 colors to be displayed by LVDS interface is available.
•Utilizes a panel with a 16:9 aspect ratio.
•The 7.0” screen produces a high resolution image that is composed of 384,000 pixel elements in a stripearrangement.
•By adopting In Plane Switching (IPS) technology, provide a wide viewing angle.
•By adopting an active matrix drive, a picture with high contrast is realized.
•By using of COG mounting technology, the module became thin, light and compact.
•By adopting a high aperture panel, high transmittance color filter and high transmission polarizing plates, transmittance ratio is realized.
•Grayscaleorthebrightnessofthesub-pixelcolorisdeterminedwitha8-bitgrayscalesignal.
•ByadoptingLVDSinterface,themodulehasagoodperformanceintermsofEMI.
| CHARACTERISTIC ITEM | SPECIFICATION |
|---|---|
| Active Screen Size | 7.0 inches diagonal |
| Outline Dimension | 170 mm (H)×106.3 mm (V) X 10 mm (D) (Typ.) |
| Pixel Pitch | 0.1905 mm x 0.1905 mm |
| Pixel Format | 800 horiz. by 480 vert. Pixels, RGB stripe arrangement |
| Color Depth | 8bit, 16,777,216colors |
| Luminance, White | 450 cd/m2 (Center 1point ,Typ.) |
| Viewing Angle (CR>10) | Viewing angle free ( R/L 178 (Min.), U/D 178 (Min.)) |
| Power Consumption | Total 3.4W (Typ.) [Logic= 0.9W, Backlight= 2.5W (BL_DIM=100%)] |
| Weight | 220.0g (MAX) |
| Display Mode | Transmissive mode, Normally Black |
| Surface Treatment | Anti-glare treatment of the front polarizer |
