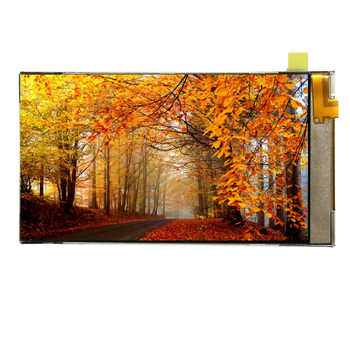

The LB043WV2-SD01 model is a Color TFT(Main) LCD supplied by LG Display.
This Module has a 4.3 inch diagonally measured active display area with 480(RGB)X800 resolution.
Each pixel is divided into Red, Green and Blue sub-pixels and dots which are arranged in vertical stripes.
The LCD color is determined with 16.7M colors signal for each pixel.
The LB043WV2-SD01 has been designed to apply the interface method that enables low power, high speed,
and high contrast.
The LB043WV2-SD01 is intended to support applications where thin thickness, wide viewing angle
and low power are critical factors and graphic displays are important.
| CHARACTERISTIC ITEM | SPECIFICATION |
|---|---|
| Display Mode | Normally Black, Transmissive |
| Viewing Direction | Wide View Angle |
| Driving Method | a-si TFT Active Matrix |
| Inversion Type | Column Inversion |
| Input Signals | 24Bit RGB I/F |
| Outside Dimensions | 640(H) X 3(R,G,B) X 480(V) |
| Active Area | 56.16mm(W) X 93.6mm(H) |
| Number of Pixels | 480× RGB× 800 Pixels |
| Pixel Pitch | 0.117mm X 0.117mm (217ppi) |
| Pixel Arrangement | RGB Vertical stripes |
| Drive IC | LG4572B |
| Weight | 32g |
