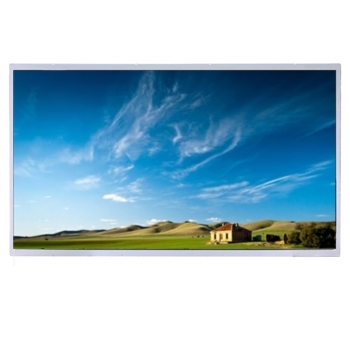

LM215WF3 is a Color Active Matrix Liquid Crystal Display with a Light Emitting Diode ( White LED) backlight
system without LED driver. The matrix employs a-Si Thin Film Transistor as the active element.
It is a transmissive type display operating in the normally black mode. It has a 21.5 inch diagonally
measured active display area with FHD resolution (1080 vertical by 1920horizontal pixel array)
Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes.
Gray scale or the brightness of the sub-pixel color is determined with a 8-bit gray scale signal for each dot,
thus, presenting a palette of more than 16,7M colors with A-FRC (Advanced Frame Rate Control).
It has been designed to apply the 8Bit 2 port LVDS interface.
It is intended to suppor t displays where high brightness, super wide viewing angle,
high color saturation, and high color are important.
| CHARACTERISTIC ITEM | SPECIFICATION |
|---|---|
| Active screen size | 21.5 inches(54.61cm) diagonal |
| Outline Dimension | 497.6(H) x 292.2(V) x 10.5(D) mm |
| Pixel Pitch | 0.08265*RGB(H)mm x 0.24795(V)mm |
| Pixel Format | 1920 horiz. By 1080 vert. Pixels RGB stripes arrangement |
| Color Depth | 16,7M colors (6bit + A-FRC) |
| Luminance, White | 250 cd/m2 ( Center 1 Point, Typ.) |
| Viewing Angle (CR>10) | View Angle Free (R/L 178(Typ.), U/D 178(Typ.)) |
| Power Consumption | Total 15.65 Watt Typ. (3.75 Watt @VLCD, 11.9 Watt @Is=120mA) |
| Weight | 1920 g (typ.) |
| Display operating mode | Transmissive mode, normally black |
| Surface treatments | Hard coating(3H), Anti-glare treatment of the front polarizer |
