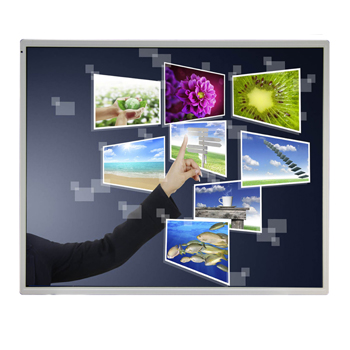

LB190E02 is a Color Active Matrix Liquid Crystal Display with a Light Emitting Diode ( White LED) backlight
system without LED driver. The matrix employs a-Si Thin Film Transistor as the active element.
It is a transmissive type display operating in the normally black mode. It has a 19.0 inch diagonally
measured active display area with SXGA resolution (1024 vertical by 1280 horizontal pixel array)
Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes.
Gray scale or the brightness of the sub-pixel color is determined with a 8-bit gray scale signal for each dot,
thus, presenting a palette of more than 16,7M colors
It has been designed to apply the 8Bit 2 port LVDS interface.
It is intended to suppor t di splays where high br ightnes s, super wide viewing angle,
high color saturation, and high color are important.
| CHARACTERISTIC ITEM | SPECIFICATION |
|---|---|
| Active screen size | 19.0 inches (481.9mm) diagonal |
| Outline Dimension | 396.0(H) x 324.0(V) x 12.8(D) mm(Typ.) |
| Pixel Pitch | 0.294 (H)mm x 0.294(V)mm |
| Pixel Format | 1280 horiz. by 1024 vert. Pixels. RGB stripe arrangement |
| Color Depth | 16,7M colors |
| Luminance, White | 330 cd/m2 ( Center 1 Point, Typ.) |
| Viewing Angle (CR>10) | View Angle Free (R/L 178(Typ.), U/D 178(Typ.)) |
| Power Consumption | Total 15.52 Watt (Typ.) (4 Watt @VLCD, 11.52 Watt @W/O Driver) |
| Weight | 1250 g (typ.) |
| Display operating mode | Transmissive mode, normally black |
| Surface treatments | Hard coating(3H), Anti-Glare treatment of the front polarizer |
