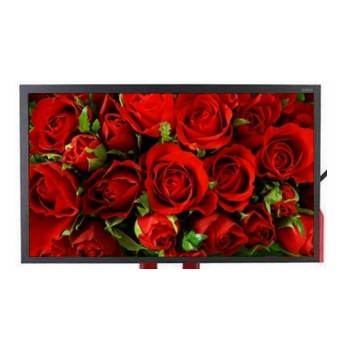

LM240WU9 is a Color Active Matrix Liquid Crystal Display with Light Emitting Diode(GBLED)
backlight system without LED Driver.The matrix employs a-Si Thin Film Transistor as the
active element.It is a transmissive type display operating in the normally black mode.It has a 24 inch diagonally measured active display area with WUXGA resolution(1200 vertical by 1920 horizontal pixel array)Each pixel is divided into Red,Green and Blue sub-pixels or dots which are arranged in verticals tripes.
Gray scale o rthe brightness of the sub-pixel color is determined with a10-bit gray scale signal for each dot,
thus, presenting a palette of more than 1.07B colors with Advanced-FRC (Frame Rate Control). Ithas been designed to apply the 10Bit 2 port LVDS interface. It is intended to support displays where high brightness, super wide viewing angle, high color saturation, and high color are important.
| CHARACTERISTIC ITEM | SPECIFICATION |
|---|---|
| Active screen size | 24.1 inches (61.13 cm) diagonal |
| Outline Dimension | 546.4(H) x 352.0(V) x 15.5(D) mm (Typ.) |
| Pixel Pitch | 0.270 mm x 0.270 mm |
| Pixel Format | 1920 horiz. By 1200 vert. Pixels RGB stripes arrangement |
| Color Depth | 8-bit + A-FRC, 1,073,741,824 colors |
| Luminance, White | 350cd/m2 ( Center 1 points) |
| Viewing Angle (CR>10) | View Angle Free (R/L 178(Typ.), U/D 178(Typ.)) |
| Power Consumption | Total 36.96Watt (Typ.) ( 6.36 Watt @VLCD, 30.6 Watt @VDDB ) |
| Weight | 2450 g (typ.) |
| Display Operating Mode | Transmissive mode, normally black |
| Surface Treatment | Hard coating(3H), Anti-glare treatment of the front polarizer |
