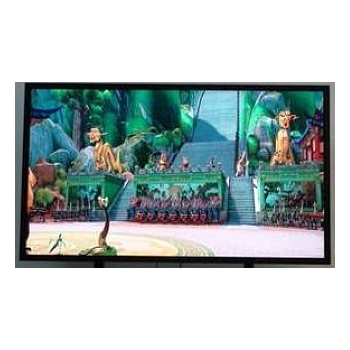

LM230WF3 is a Color Active Matrix Liquid Crystal Display with a Light Emitting Diode ( White LED) backlight
system without LED driver. The matrix employs a-Si Thin Film Transistor as the active element.
It is a transmissive type display operating in the normally black mode. It has a 23 inch diagonally measured
act ive display area with FHD resolut ion (1080 ver t ical by 1920hor izontal pixel ar ray)
Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes.
Gray scale or the brightness of the sub-pixel color is determined with a 8-bit gray scale signal for each dot,
thus, presenting a palette of more than 16,7M colors with A-FRC (Advanced Frame Rate Control).
It has been designed to apply the 8Bit 2 port LVDS interface.
It is intended to suppor t displays where high brightness , super wide viewing angle,
high color saturation, and high color are important.
| CHARACTERISTIC ITEM | SPECIFICATION |
|---|---|
| Active screen size | 23 inches(58.42cm) diagonal |
| Outline Dimension | 533.2(H) x 312.0(V) x 10.5(D) mm (Typ.) |
| Pixel Pitch | 0.2652 mm x 0.2652 mm |
| Pixel Format | 1920 horiz. By 1080 vert. Pixels RGB stripes arrangement |
| Color Depth | 16,7M colors (6bit + A-FRC) |
| Luminance, White | 300 cd/m2 ( Center 1 Point, Typ.) |
| Viewing Angle (CR>10) | View Angle Free (R/L 178(Typ.), U/D 178(Typ.)) |
| Power Consumption | Total 25.2 Watt (Typ.) ( 4.1 Watt @VLCD, 21.1 Watt @Is=110mA ) |
| Weight | 1,580g (typ.) |
| Display Operating Mode | Transmissive mode, normally black |
| Surface Treatment | Hard coating(3H), Anti-glare treatment of the front polarizer |
