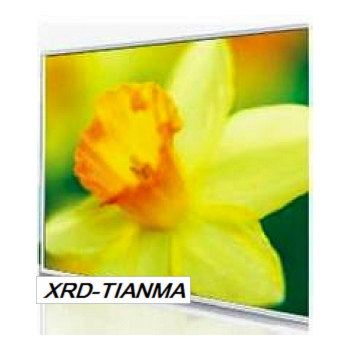

TM121SDS01 module is composed of the amorphous silicon thin film transistor liquid crystal display
(a-Si TFT LCD) panel structure with driver LSIs for driving the TFT (Thin Film Transistor) array and a acklight.
The a-Si TFT LCD panel structure is injected liquid crystal material into a narrow gap between the TFT array
glass substrate and a color-filter glass substrate.
Color (Red, Green, Blue) data signals from a host system (e.g. PC, signal generator, etc.) are
modulated into best form for active matrix system by a signal processing board, and sent to the driver LSIs
which drive the individual TFT arrays. The TFT array as an electro-optical switch regulates the amount of
transmitted light from the backlight assembly, when it is controlled by data signals. Color images are created
by regulating the amount of transmitted light through the TFT array of red, green and blue dots.
| Item | Specification |
|---|---|
| Outline Dimension(mm) | 279.00 x 209.00 x 9.00 |
| Active Area(mm) | 246.00 x 184.50 |
| Resolution(pixel) | 800 x 600 |
| Luminance(nits) | 450 |
| Contrast Ratio | 700 |
| Viewing Angle(U/D/L/R) | 65 / 75 / 80 / 80 |
| Interface | LVDS |
| Backlight Type | LED |
| Mass Production | MP |
| With TP | No |
