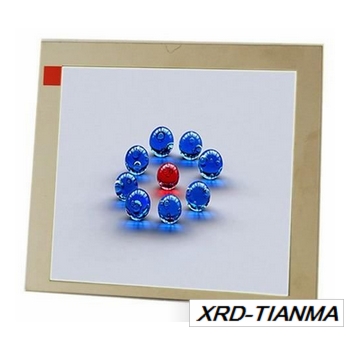

TM150TDS50 module is composed of the amorphous silicon thin film transistor liquid crystal display
(a-Si TFT LCD) panel structure with driver LSIs for driving the TFT (Thin Film Transistor) array and a
backlight. The a-Si TFT LCD panel structure is injected liquid crystal material into a narrow gap
between the TFT array glass substrate and a color-filter glass substrate.
Color (Red, Green, Blue) data signals from a host system (e.g. PC, signal generator, etc.) are
modulated into best form for active matrix system by a signal processing board, and sent to the driver
LSIs which drive the individual TFT arrays. The TFT array as an electro-optical switch regulates the
amount of transmitted light from the backlight assembly, when it is controlled by data signals. Color
images are created by regulating the amount of transmitted light through the TFT array of red, green
and blue dots.
TM150TDSG52 module is composed of the amorphous silicon thin film transistor liquid crystal
display (a-Si TFT LCD) panel structure with driver LSIs for driving the TFT (Thin Film Transistor)
array and a backlight. The a-Si TFT LCD panel structure is injected liquid crystal material into a
narrow gap between the TFT array glass substrate and a color-filter glass substrate.
Color (Red, Green, Blue) data signals from a host system (e.g. PC, signal generator, etc.) are
modulated into best form for active matrix system by a signal processing board, and sent to the driver
LSIs which drive the individual TFT arrays. The TFT array as an electro-optical switch regulates the
amount of transmitted light from the backlight assembly, when it is controlled by data signals. Color
images are created by regulating the amount of transmitted light through the TFT array of red, green
and blue dots.
TM150TDS50
TM150TDSG52
| Item | Specification |
|---|---|
| Outline Dimension(mm) | 326.50 x 253.50 x 11.80 |
| Active Area(mm) | 304.13 x 228.10 |
| Resolution(pixel) | 1024 x 768 |
| Luminance(nits) | 400 |
| Contrast Ratio | 600 |
| Viewing Angle(U/D/L/R) | 80 / 80 /80 / 80 |
| Interface | LVDS |
| Backlight Type | LED |
| Mass Production | MP |
| With TP | No |
TM150TDSG52
| Item | Specification |
|---|---|
| Outline Dimension(mm) | 326.50 x 253.50 x 11.80 |
| Active Area(mm) | 304.13 x 228.10 |
| Resolution(pixel) | 1024 x 768 |
| Luminance(nits) | 250 |
| Contrast Ratio | 600 |
| Viewing Angle(U/D/L/R) | 80 / 80 / 80 / 80 |
| Interface | LVDS |
| Backlight Type | LED |
| Mass Production | 2012Q3 |
| With TP | No |
