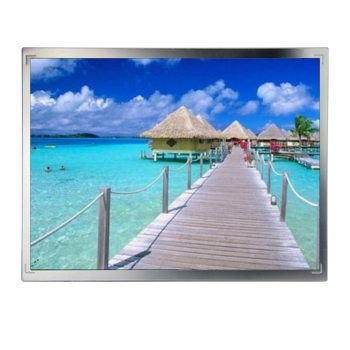

The LB150X03-TL03 is a Color Active Matrix Liquid Crystal Display with anintegral LED backlight system.
This LCM has LED replaceable function.(LGD can‟t guarantee the LCM with the replaced LED).
The matrix employs a-Si Thin Film Transistoras the active element.It is a transmissive type display operating in the normally white mode.This TFT-LCD has 15.0 inches diagonally measured active display area with XVGA resolution(1024 horizontal by 768 vertical pixe larray).Eachpixel is divided into Red,Green and Blue sub-pixels or dots which arearranged in verticals tripes.Gray scale or the brightness of the sub-pixel color is determined with a 8-bit(or 6-bit) gray scale signal fo each dot,thus,presenting a palette of more than16,777,216(or 262,144)colors.
The LB150X03-TL03 has been designed to apply the interface method that enable slow power,high speed,low EMI.
The LB150X03TL03 is intended to support applications where thin thickness, low power are critical factors and graphic displays are important.In combination with the vertical arrangement of the sub-pixels,the LB150X03-TL03 characteristics provide an excellent flat display for office automation products such as PC or etc.
| CHARACTERISTIC ITEM | SPECIFICATION |
|---|---|
| Active Screen Size | 15.0 inches(30.75cm) diagonal |
| Outline Dimension | 326.5(H) ×253.5(V) ×12.0(D) mm (Typ.) |
| Pixel Pitch | 0.297 mm × 0.296 mm |
| Pixel Format | 1024 horiz. By 768 vert. Pixels RGB strip arrangement |
| Color Depth |
16,777,216 colors (A-FRC) @ 8-bit input 262,144 colors @ 6-bit input |
| Luminance, White | 400 cd/m2(Typ.) |
| Power Consumption | Total 10.1 Watt(Typ.) @ LCM circuit 1.5 Watt(Typ.), B/L input 8.6 Watt(Typ.) |
| Weight | 930 g (Max.) |
| Display Operating Mode | Transmissive mode, normally white |
| Surface Treatment | Anti-glare |
| RoHS Comply | Yes |
