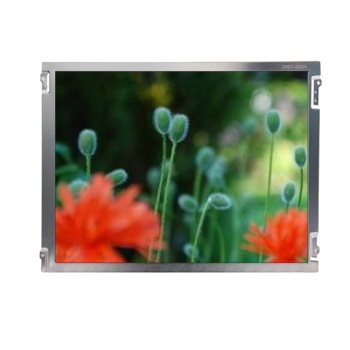

The LB121S03-TL04 is a Color Active Matrix Liquid Crystal Display with an integral LED backlight system.
The matrix employs a-Si Thin Film Transistor as the active element. It is a transmissive type display
operating in the normally white mode. This TFT-LCD has 12.1 inches diagonally measured active display
area with SVGA resolution(800 horizontal by 600 vertical pixel array). Each pixel is divided into Red, Green
and Blue sub-pixels or dots which are arranged in vertical stripes. Gray scale or the brightness of the subpixel
color is determined with a 8-bit(or 6-bit) gray scale signal for each dot, thus, presenting a palette of
more than 16,777,216(or 262,144) colors.
The LB121S03-TL04 has been designed to apply the interface method that enables low power, high speed,
low EMI.
The LB121S03-TL04 is intended to support applications where thin thickness, low power are critical factors
and graphic displays are important. In combination with the vertical arrangement of the sub-pixels, the
LB121S03-TL04 characteristics provide an excellent flat display for office automation products such as PC
or etc.
| CHARACTERISTIC ITEM | SPECIFICATION |
|---|---|
| Active Screen Size | 12.1 inches(30.75cm) diagonal |
| Outline Dimension | 276(H) × 209(V) × 10.1(D) mm (Typ.) |
| Pixel Pitch | 0.3075 mm × 0.3075 mm |
| Pixel Format | 800 horiz. By 600 vert. Pixels RGB strip arrangement |
| Color Depth |
16,777,216 colors (A-FRC) @ 8-bit input 262,144 colors @ 6-bit input |
| Luminance, White | 400 cd/m2(Typ.) |
| Power Consumption | Total 5 Watt(Typ.) @ LCM circuit 0.8 Watt(Typ.), B/L input 4.2 Watt(Typ.) |
| Weight | 600g(Max) |
| Display Operating Mode | Transmissive mode, normally white |
| Surface Treatment | Anti-glare |
| RoHS Comply | Yes |
