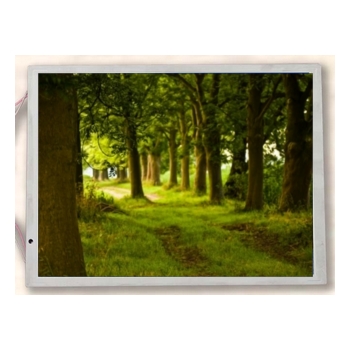

This module utilizes amorphous silicon thin film transistors and a 4:3 aspect ratio. The 10.4” active
matrix liquid crystal display allows 262,144 colors to be displayed by LVDS interface is available.
• Utilizes a panel with a 4:3 aspect ratio.
• The 10.4” screen produces a high resolution image that is composed of 480,000 pixel elements in a stripe
arrangement.
• By adopting Wide viewing angle technology is employed.
• By adopting an active matrix drive, a picture with high contrast is realized.
• By adopting a high aperture panel, high transmittance color filter and high transmission polarizing plates,
transmittance ratio is realized.
• Gray scale or the brightness of the sub-pixel color is determined with a 6-bit gray scale signal.
• By adopting LVDS interface, the module has a good performance in terms of EMI.
| CHARACTERISTIC ITEM | SPECIFICATION |
|---|---|
| Active screen size | 10.4 inches (264.16mm) diagonal |
| Outline Dimension | 224.5(H) x 172.0(V) x 6.8(D) mm(Typ.) |
| Pixel Pitch | 0.264(H) mm x 0.264(V)mm |
| Pixel Format | 800(H) By 600 (V) Pixels RGB stripes arrangement |
| Color Depth | 6-bit, 262,144 colors |
| Luminance, White | 250 cd/m2(Typ.) |
| Main Viewing Angle | 6 o‟clock |
| Power Consumption | Total 3.2W (Typ.) [Logic= 1.18W, Backlight= 2.02W (BL_DIM=100%)] |
| Weight | 302.5g(Typ.) 317g(MAX) |
| Display operating mode | Transmissive mode, normally white |
| Surface treatments | Anti-glare& hard coating(3H) |
