UART TFT

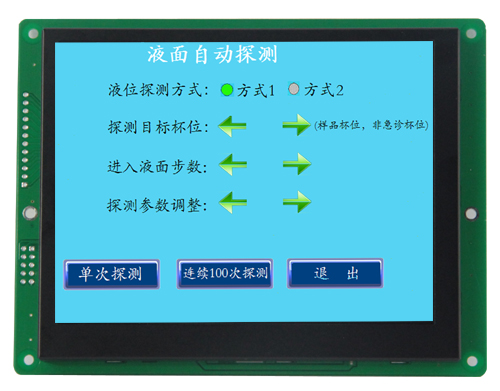

1.What is UART TFT LCD Module
UART stands for Universal Asynchronous Receiver/Transmitter. It is a simple system device that transmits data between serial and parallel forms in which users are able to control high performance Color TFT displays and create high level Graphic User Interface (GUI) from low-end systems. This function is enabled with smart software exchange data between memorizer port and users to make ZERO CODE for HMI development come true.
2. Advantages behind GUI Intelligent TFT LCD Modules
Some differences between the traditional LCD and UART interface LCD's are:
1) Without code programming for realizing GUI effects, users may read and rewrite the code that is stored in the variable memory by serial ports, which greatly reduces the code amount of users' micro controller, and the touching logics as well as displayed contents are defined by configuration files.
2) Functions such as conversing image format and supporting animation effects and images are equipped. Also an extensive font, icon, and image library available for user selection.
3) With only an SD card containing XRD_SET folder which stored touch config. File, Image Icon file, it can realize interface effects without PC terminal assistant operation.
4) Extreme response speed of refresh time (≤200 ms) to meet users' highly real time requirements; Commands will never overflow from the buffer, so that no necessity for users to judge the condition of serial port.
5) With only three data lines, the MCU is capable of controlling the LCD module. Anyone can perform TFT design with minimal programming.

3.Basic Function
◆support TTL/CMOS，RS232，RS485 voltage level
◆High speed display and refresh
◆Support 16bits color BMP display, large capacity picture library
◆TP coordinate and key value output, buzzer prompt
◆Achieve automatically switching, perform preset instruction
◆Factory standard preinstalled
◆Library: 4 Chinese Fonts and a ASCII code library
◆Support UIF-16 code, multilingual display
◆GUI Drawing Instructions
◆Hardware Real-time clock
◆Simulation control and software upload
◆ 1200~115200bit/s Communication Bitrates
◆Image and font file preset through serial port
◆Backlight Instruction control

Display Performance	Parameter	Description
Color	65K(65565)	16bit,Palette, RGB (5R6G5B)
A.A	112.9 (W)*84.7 (H) mm	800*480
A.A	115.2 (W)*86.9 (H) mm	800*480
Outline	144.8 (W)110.2(H)18.2/19.7(T)mm	TP None:17.5mmm,With TP:19.0mm
Resolution	640*480
BL Type	LED
Luminance	250nit(XRDT640480056S3ST-A/B(D))	64 levels adjustment by 0x5F instruction
Luminance	250nit(XRDT640480056S3ST-A/B(D))	64 levels adjustment by 0x5F instruction

Electric Performance	Conditions	Min	Typ	Max	Unit
Operation Voltage	-	5.5	12	26	v
Operation Voltage	-	4.6	5	5.5	v
Storage Temperature	VCC=+12V Max BL Luminance	-	260	-	mA
	VCC=+12V， BL OFF	-	100	-	mA
	VCC=+5V，Max BL Luminance	-	500	-	mA
	VCC=+5V，BL OFF	-	180	-	mA
Recommended Power Supply:12V,1A DC regulated supply

Reliability	Conditions	Min	Typ	Max	Unit
Operation Temperature）	12V.60% Humidity	-20	25	70	C
Storage Temperature）	-	-30	25	80	C
Operation Humidity	-	10%	60%	90%	RH
Three anti-treatment	-	-	None	-	RH
EESD Protection Class	3C ESD-20	-	CLASS3	-	-
Aging time before delivery	-	-	24	-	H

Interface	Conditions	Min	Typ	Max	Unit
Output Baud rate		1200	115200	-	bps
Output Baud rate		-	961200	-	bps
Parallel output votage level	Output 1，Iout=1mA	3	3.2	-	V
（TXD、BUSY）	Output 0，Iout=-1mA	-	0.1	-	V
Parallel Input votage level	Inpute 1，Iin=1mA	2	3.3	15	V
（RXD、I/O0）	Inpute 0，Iin=-1mA	-15	0	0.3	V
Parallel Mode	(8N1 UAR,Optional communication voltage level through resistance. support TTL/CMOS，RS232，RS485 voltage level)
Interface Type	（Optional，support 8PIN 2.5mm pitch DuPont line interface and 10PIN 1.0mm pitch FFC interface)
USB interface	None
SD card interface	With SD card inferface.can copy and update pictures and Parameter

Memory Type		Min	Typ	Max	Unit
FLASH Memory	(Total Capacity	-	-	128	MB
	Font storage space	-	-	32	MB
	full-screen image storage	-	-	140	pc
