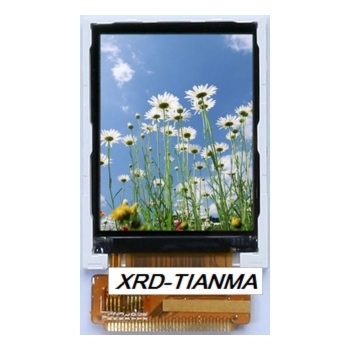

TM020GDHL2
TM020HDH17
TM020GDH44
TM020HDH17
TM020GDH44
TM020GDHL2
TM020HDH17
TM020GDH44
| Item | Specification |
|---|---|
| Outline Dimension(mm) | 46.40 x 42.80 x 2.15 |
| Active Area(mm) | 38.80 x 30.62 |
| Resolution(pixel) | 220 x 176 |
| Contrast Ratio | 350 |
| Viewing Angle(U/D/L/R) | 50 / 20 / 45 / 45 |
| Interface | CPU |
| Backlight Type | LED |
| Mass Production | MP |
| Brightness(cd/㎡) | 220 |
| With TP | No |
| Application | Mobile phone |

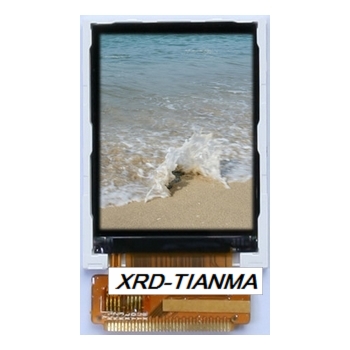

TM020HDH17
| Item | Specification |
|---|---|
| Outline Dimension(mm) | 35.70 x 51.20 x 2.15 |
| Active Area(mm) | 30.24 x 40.32 |
| Resolution(pixel) | 240 x 320 |
| Contrast Ratio | 350 |
| Viewing Angle(U/D/L/R) | 50 / 20 / 45 / 45 |
| Interface | CPU |
| Backlight Type | LED |
| Mass Production | MP |
| Brightness(cd/㎡) | 200 |
| With TP | No |
| Application | Mobile phone |

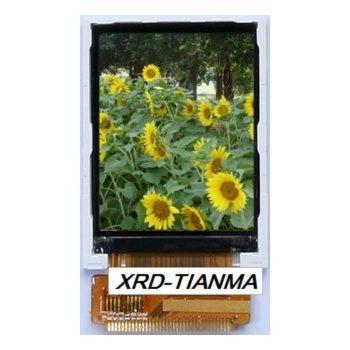

TM020GDH44
| Item | Specification |
|---|---|
| Outline Dimension(mm) | 38.03 x 51.65 x 2.50 |
| Active Area(mm) | 31.68 x 39.60 |
| Resolution(pixel) | 176 x 220 |
| Contrast Ratio | 350 |
| Viewing Angle(U/D/L/R) | 70 / 60 / 70 / 70 |
| Interface | CPU |
| Backlight Type | LED |
| Mass Production | MP |
| Brightness(cd/㎡) | 220 |
| With TP | No |
| Application | Mobile phone |
