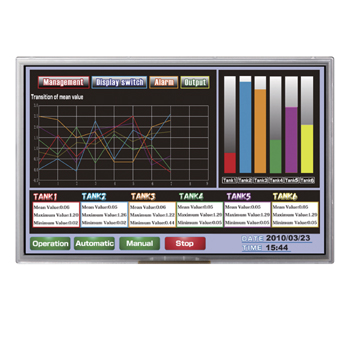

Color LCD module NL12880BC20-05D is composed of
the amorphous silicon thin film transistor
liquid crystal display (a-Si TFT LCD) panel structure
with driver LSIs for driving the TFT (Thin Film
Transistor) array and a backlight.
The a-Si TFT LCD panel structure is injected liqu
id crystal material into a narrow gap between the
TFT array glass substrate and a
color-filter glass substrate.
Color (Red, Green, Blue) data signals from a host system (e.g. signal generator, etc.) are modulated
into best form for active matrix system by a signal pr
ocessing board, and sent to the driver LSIs which
drive the individual TFT arrays.
The TFT array as an electro-optical switch regulates the amount of transmitted light from the backlight
assembly, when it is controlled by data signals. Color images are created by regulating the amount of
transmitted light through the TFT array of red, green and blue dots.
12.1 | NLB121SV01L-01 | 800(H)x600(V) | 450 | LVDS |
NL8060BC31-47D | 800(H)x600(V) | 450 | LVDS | |
NL10276BC24-21 | 1024(H)x768(V) | 450 | LVDS | |
NL12880BC20-05D | 1280(H)x800(V) | 450 | LVDS |
12.1 | NLB121SV01L-01 | 800(H)x600(V) | 450 | LVDS |
NL8060BC31-47D | 800(H)x600(V) | 450 | LVDS | |
NL10276BC24-21 | 1024(H)x768(V) | 450 | LVDS | |
NL12880BC20-05D | 1280(H)x800(V) | 450 | LVDS |
